PRODUCT OVERVIEW

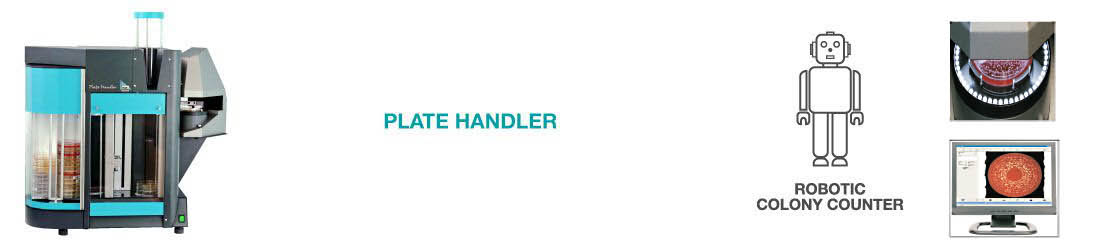

Freeing labs from all the workload generated by colony counting is achieved when using the Plate Handler. This unit enables labs to enhance their productivity through full colony counting/inhibition halo measurement automation by processing up to 240 plates per hour. Food, pharmaceutical, cosmetic and clinical labs can benefit alike from this walk-away solution.
Petri plate carrousels which contain 4 columns of 20 Petri plates are loaded into the Plate Handler. Carrousels are rotated in order to process each Petri plate column. Each column is carried towards the Petri plate elevator. Next, plates are individually fed to the Flash&Go colony counter for reading. Petri plates are identified according to column positions or barcode labels.
SYSTEM HIGHLIGHTS
Full Automation: A one-push button operation enables to process every plate in an orderly fashion, freeing lab operators to devote their time to added value tasks.
User friendliness: Operating the unit is very simple. Changes in pre-programmed settings for colony counting or antibiotic inhibition zone measurements take a few seconds. Different colony counting procedures can be easily assigned to processed plates.
Productivity: The device can process 80 plates in 20 minutes implying a negligible hands-on time per processed Petri plate. The Plate Handler is a “must have” for labs that seek to increase their productivity by tackling critically labor-intensive procedures.
APLICATION SCOPE
Yeast and bacterial colonies of any color can be counted in 90 mm plates when using the
TECHNICAL DATA
Petri dishes | Any model of 90 mm diameter in plastic. |
Carrousel capacity | From 80 to 96 plates according high. |
Processing time | 20 minutes complete carrousel. |
Attachment | Can be mounted to any COUNTERMAT FLASH and FLASH & GO. |
Mains | 100/240 V, 50/60 Hz, 500 W. |
Dimensions (LxWxH) | 840 x 350 x 850 mm |
Weight | 49 Kg |
