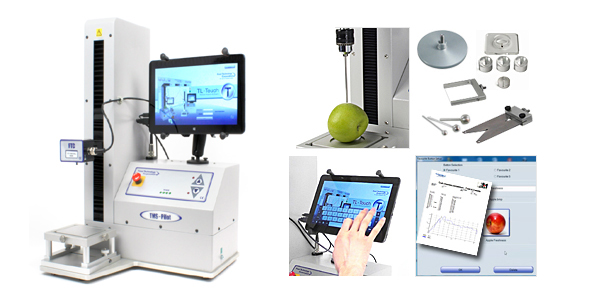

- Food Texture Analyzer TMS - PILOT
 |
|||||
| Operated via an intuitive touch screen interface, the TMS-Pilot requires minimal operator training. Tests are performed at the touch of an icon and programs can be saved as favourites on the main screen for instant accessibility, using the TL-Touch software. With a plug & play design, the TMS-Pilot has a simple set up, allows load cells to be interchanged in seconds and accepts the majority of FTC's probes and fixtures. Versatile and affordable Designed with the budget-conscious in mind, the TMS-Pilot has the capabilities needed to perform basic texture testing of most food products, including: bakery, cereals, confections, snacks, dairy, fruits and vegetables, meats, gels and more. Features:  LCD touch screen interface Plug & Play design Password protected log-in Customization of reports Unlimited storage of test methods Flexible use of probes, fixtures and loadcells |
|||||
System specification |
|||||
| Force Range | ±500 N (51 kgf) |
| Force Accuracy | 0.1% of full scale for load cells from 2 -500 N |
| Load Cell Range | 2, 5, 10, 25, 50N ( 0.2 – 50 kgf) |
| Speed Range | 1 - 400 mm/min (0.04-15.7"/min) |
| Speed Accuracy | ±0.5% of set speed |
| Position Resolution | 0.01 mm (0.0004") |
| Position Accuracy | 0.5 mm (0.02") over full travel |
| Crosshead Travel | 300 mm (11.8"), without fixtures |
| Data Sampling Rate | Selectable from 1000, 500, 100, 50, 10 Hz |
| Power Supply | 110/230 V AC, 60/50 Hz |
