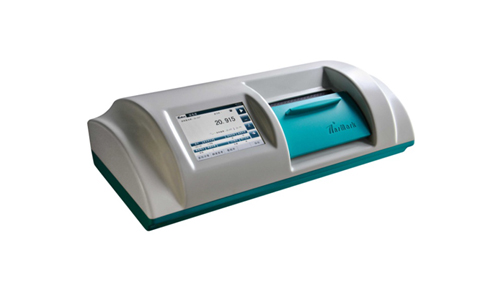

• Polarimeter – IP-Digi series



  Touch Screen
Glan Thompson Prisim
Optional 200 mm peltier instrument
Option for different wavelengths
Option for measuring flowing sample with temperature control
Option for measuring corrosive samples

 Specification  IP-digi 1  IP-digi 2  IP-digi 3  IP-digi 7  IP-digi 8
 Measuring range  ±90°  ±90°  ±90°  ±90°  ±90°
 Reasolution  0.001°  0.001°  0.001°  0.001°  0.001°
 Accuracy  ±0.01°  ±0.01°  ±0.06°  ±0.04°  ±0.01°
 Reproducibility  ±0.003°  ±0.003°  ±0.003°  ±0.003°  ±0.003°
 Temperature Range  0-100℃  0-100℃  0-100℃  0-100℃  0-100℃
 Temperature resolution  0.1℃  0.1℃  0.1℃  0.1℃  0.1℃
 T.Control model  ----  Peltier  Peltier  ----  Peltier
 T.Control range  ----  10-50℃  10-50℃  ----  10-50℃
 T.Control accuracy  ----  ±0.2℃  ±0.2℃  ----  ±0.2℃
 Sensitivity  Min0.5%  Min0.5%  Min0.5%  Min0.1%  Min0.5%
 Prism  polymer  polymer  polymer  Glan Thompson  polymer
 Light source  LED, 100000 hours  LED, 100000 hours  LED, 100000 hours  LED, 100000 hours  LED, 100000 hours
 Wavelength  589nm  589nm  589nm  589nm  589nm
 Measuring mode  Optical rotation, Specific rotation, Concentration, International sugar scale  Optical rotation, Specific rotation, Concentration, International sugar scale  Optical rotation, Specific rotation, Concentration, International sugar scale  Optical rotation, Specific rotation, Concentration, International sugar scale  Optical rotation, Specific rotation, Concentration, International sugar scale
 Sample chamber  up to 200mm  up to 200mm  up to 200mm  up to 200mm  up to 200mm
 Interface  RS232, USB  RS232, USB  RS232, USB  RS232, USB  RS232, USB
 Display  8 inch touch screen, Color LCD  8 inch touch screen, Color LCD  8 inch touch screen, Color LCD  8 inch touch screen, Color LCD  8 inch touch screen, Color LCD
 Database  4000 groups data  4000 groups data  4000 groups data  4000 groups data  4000 groups data
