PRODUCT OVERVIEW

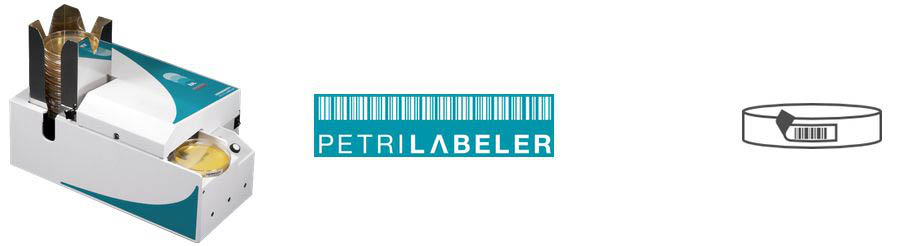

The unit automatically tags barcode labels on the side walls of Petri plates..
Operating the unit is as simple as feeding a stack of Petri plates on one end, pushing the “start” button, and collecting labeled plates at the other end.
The Petri Labeler labels plate walls, enabling comfortable inspection, reading, and counting of Petri plates.

SYSTEM HIGHLIGHTS

Readiness: Labels come preprinted with a 9 figures number, potential mistakes are avoided.
Traceability: By using a barcode reader, any identified Petri plate can be associated to any sample at any time.
Maintain sterility: During the pairing process, the lid is never removed, it is only slightly displaced to allow the label to be stuck on the side wall of the plate.
Flexibility: Identified Petri plates await being collected, once removed, a new plate is processed. Alternatively, a whole stack of plates can be processed at once, labeled plates can be collected in an optional collecting platform.
Adaptability: It easily accommodates different 90mm Petri dish sizes (e.g. different diameter and/or height).
Productivity: Less than 2 seconds per plate.
Friendliness: Small footprint and silent operation.

TECHNICAL DATA

 Power range  100-240 V AC
 Frequency range  50/60Hz
 Maximum power  25W
 Overvoltage category  II
 Air temperature  5-32ºC (41-89,6ºF)
 Altitude  Up to 2000m. (6500Ft.)
 Place of operation  For indoor use only.
 Pollution level  2
 Labeling features
 Petri dish dimensions  Common 90mm Petri dishes
 Label size  8 x 30mm
 Label characteristics  White coated, calendared, woodfree paper.
 Adhesive characteristics  General purpose permanent acrylic water based adhesive. The adhesive conforms several regulations certified by ISEGA for direct contact with dry and moist non-fatty foodstuffs.
 Label shelf life  2 years, stored at 22ºC / 50% RH
 Barcode characteristics  Simbology code 128
 Barcode size  3,8 x 27,7mm (approx.)
 Thermal transfer printed ribbon used (Wax/resin)    -REACH/SVHC Free: 1907/2006/EC
   -Food contact Approved: 1935/2004/EC
   -Heavy metals free: 2002/95/EC, 2002/96/EC, and 2011/65/EC
   -California proposition 65
   -Halogen Free
