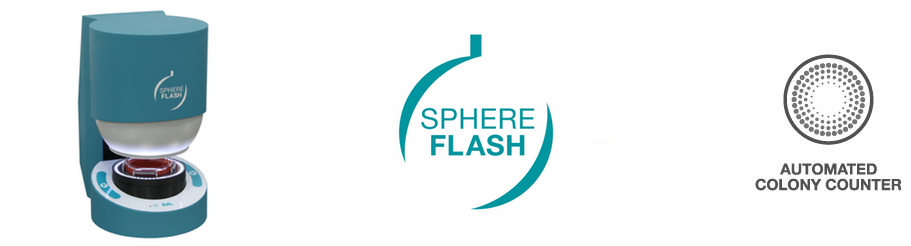

- AUTOMATED COLONY COUNTER
SYSTEM HIGHLIGHTS
World-Class Software: Easy & intuitive yet a powerful software. Even in its LITE version it will detect a wide range of colony types with minor or none user parametrization.
Reflections-Free Illumination: Its patentend spheric chamber eliminates reflections in both, colonies and Petri plate, and provides a unifrom illumination for an improved image capture that will lead to better, more reliable, and consistent results.
Audit Trail: Security-relevant chronological set of records that will provide documentary evidence of the sequence of activities that have affected at any time a specific operation or event in the SphereFlash®.
Report generation: Easy and automatic generation of result reports with customizable layout to include your Company’s logo and/or information.
Technical Specification
| Reflected Lighting | Patented 360O LED oriented to the internal wall of moving spherical chamber. |
| Transmitted Lighting | From Homogeneous Surface. |
| Background field | 90 x90 mm ( 8100 mm 2 ). |
| Imaging device | 5 mega pixel CMOS . |
| Image field | CIRCLE 6360 mm 2 |
| Minimum colony size | 0.046 mm. |
| Color Detection | 5 Colors on same petri dish |
| Counting Time | 500 CFU/SEC. |
| Counting area adjustment | Automatic |
| Counting colonies | On Petri dishes, Spiral® plates,Chromogenic Petri dishes, Antibiograms, Petrifilm®,Filtration membrane |
| Inhibition zone reading | Up to 12 paper disks on round dishes or on 90mm single Petri dish. |
| Automatic separation of clustered colonies | YES |
| Manual addition and removal of colonies | YES |
| Image capture | True color , RGB 32 pixel. |
| Image resolution | 1944 x 1944 pixels. |
| Power Range | 90-264 VAC, |
| Frequency Range | 50-60 Hz |
| Power Consumption | 40 W |
| Air Temperature | 15°C to 30°C |
| Operating Relative Humidity | 10% to 75% (non condensing) |
| Over Voltage Category | II |
| Pollution Level | 2 |
| Computer Interface | USB 3.0Type –A Socket |
| Dimensions (WxHxD) | 288x220 x 371 mm. |
PC /Computer Requirements:
- Microsoft Windows® 7, 8.1,10 (x64 platforms).
- 1 free USB 3.0 Port.
- 8 Gigabytes of RAM memory.
- 100 Megabytes of free disk space and 100 Gigabytes for the Database (for 5000 results stored with images).
- FullHD screen (1920x1080px) recomended.
- 24’’ screen size recommended.
- Microsoft Excel® 2007 or higher, 64 bits to open exported Excel® files.
- A virtual PDF printer to create PDF reports.
