- NABI UV/Vis NANO SPECTROPHOTOMETER
 |

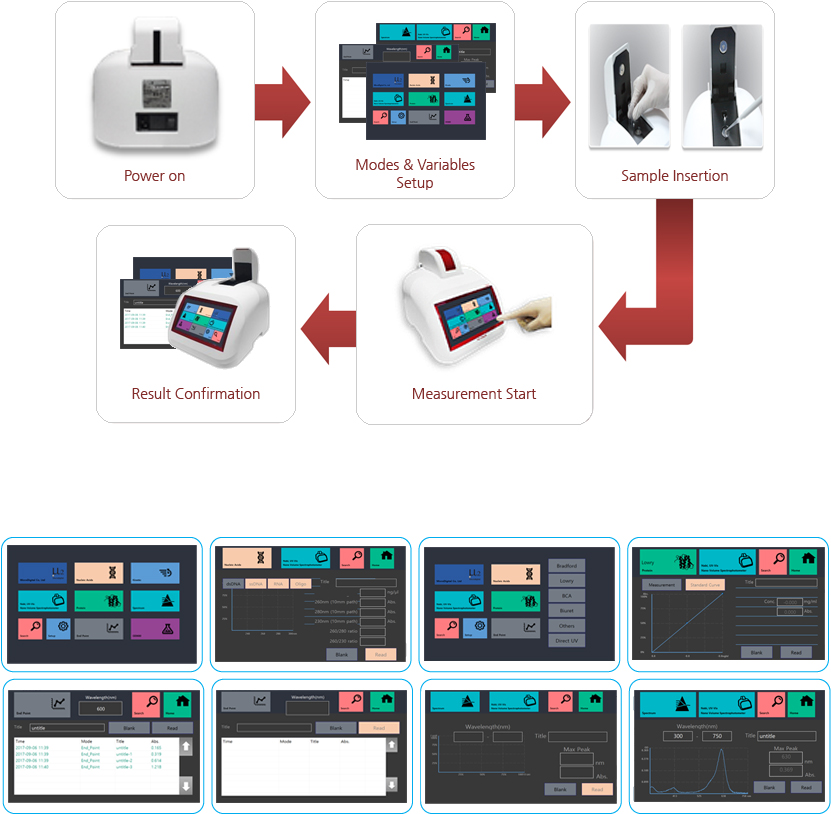

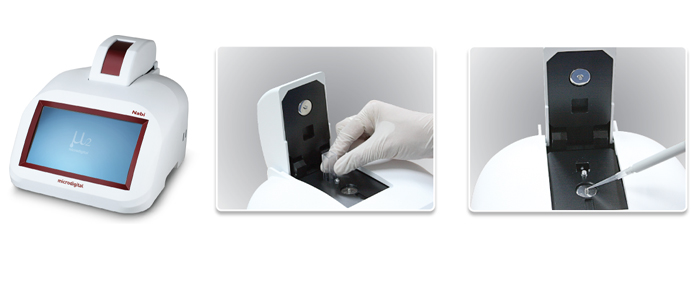

| Nabi- UV/Vis Nano Spectrophotometer is a miniature spectrophotometer that can measure cuvette and microvolume samples. Using spectrometer technology, it can accurately and conveniently measure and analyze single wavelength as well as spectrums. It is a standalone system with 7.0” touch screen LCD, and simple data back up through USB is possible. Features: - Cuvette and microvolume sample - Measurement of single wavelength as well as spectrum analysis using spectrometer technology - Simple and miniature design - Stand-alone system with easy-to-use 7.0” LCD touch screen - Simple data backup using USB - Modes: DNA/RNA, protein, cells, end point, kinetic, spectrum Measurement protocol:  General Specification |
| Light Source | Xenon Flash Lamp |
| Detector | CCD (2,048 Pixels), (reference beam available) |
| Wavelength Accuracy | ±1 nm |
| Wavelength Range | 200 – 1,100 nm |
| Spectral Resolution | 0.3 nm |
| Dimension | 220 x 280 x 220 mm 8.6 x 11.0 x 8.6 in |
| Weight | 3 kg |
| Operator Voltage | 100 – 240 V, 50 – 60 Hz |
| Power Consumption | 80 – 100 W |
| Warranty | 1 Year |
| LCD Touch Panel | 7.0 in |
| Preconfigured modules and methods editors | 14 categories: dsDNA, ssDNA, RNA, Oligo, Direct UV, Spectrum for Micro-volume measurement, and Protein (Brandford, Lowry, BCA, Biuret, Others), End Point, Kinetic, OD600, and Spectrum for Cuvette Measurement. Users can freely set the wavelength to measure in End Point or other categories as well. |
| Calibration | Pre-calibrated for entire wave length |
| Nano Volume Specification | |
| Absorbance Precision | 1% at 100 ng/µl |
| Absorbance Range | 0 – 300 Abs. (10 nm equivalent) |
| Detection Limit | 2 ng/µl (dsDNA) |
| Maximum Concentration | 15,000 ng/µl (dsDNA) |
| Measurement Time | 5 sec |
| Minimum Sample Size | 0.5 µl |
| Path Length | 0.01 – 1.2 mm (Auto-ranging) |
| Cuvette Specification | |
| Beam Height | 8.5 mm |
| Path length | 10 mm |
| Absorbance Range | 0.002 – 2.0 Abs. |
| Measurement Time | 3 sec |
