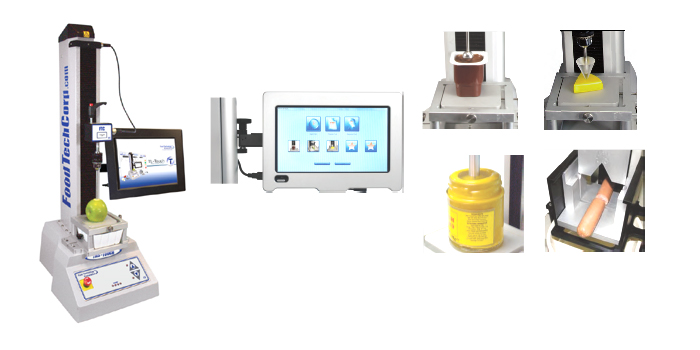

- Food Texture Analyzer TMS TOUCH
 |
|||||
| Easy to operate, Food Technology Corporation’s TMS-Touch texture analyzer is an affordable, stand alone system designed specifically for quick and easy food texture assessments. Operated via an easy to use Touch Screen LCD Console the TMS-Touch requires minimal operator training. Tests are performed at the push of a button to instantly determine consistent standards within the raw or finished product, saving time and money. Use the TMS-Touch to quickly determine the textural properties of bakery products, cereals, confectionery, snacks, dairy products, fruit, vegetables, meat products and many more… Key Features:  Password protected log-in - identifies operator for full traceability Fast access to 5 favorite tests - customized icons ensure instant test selection Unlimited library storage of test methods - minimizes set-up time Easy-to-use with minimal training - “Simplicity itself” one button launches the test Large, easy-to-read touch screen display - clearly shows Test Results and Graph Test Report - print a comprehensive report of results tailored to your needsOperators: Easy programming - intuitive menus guide you through creation of test routines Customized reports - create your own tailored report Choice of 3 program modes:− “Quick Test” for basic force testing − “Program Test” for standard test routines − “Advanced Test” for sophisticated test routines Administrators Simple touch screen interface - no separate computer required Access - master and operator modes for test security Flexible - “plug & play” for easy interchange of load cellsReports & Exporting Select standard reports or customize your own using built-in templates Save test set-up and results via memory stick or wired & wireless networks Automatic export of data to Microsoft Excel® and SPC packages Collect data at 1000 times per second for detailed recording of results from every sample and accurate capture of peak loads |
|||||
System specification |
|||||
| Force Range | 2500 N / 255 kgf |
| Force Resolution | ±0.015% of selected load cell’s range in Newton |
| Load Cells | Intelligent load cells, changeable by the user in seconds |
| Load Cell Range | 2, 5, 10, 25, 50, 100, 250, 500, 1000, 2500N ( 0.2 - 255kgf) |
| Travel Range | 330 mm (13.0”) |
| Position Resolution | ±0.01mm (±0.0004”) |
| Speed Range | 1 - 1000mm/min (0.05 - 40in/min) |
| Speed Accuracy | ±0.1% of indicated speed |
| Data Acquisition Rate | Selectable from 1000, 500, 100, 50, 10 |
| Weight | 27kg (60lbs) |
| Power Supply | 230V AC 50Hz or 110V AC 60Hz |
| Load holding | Yes |
| PLC/Digital Control Interface | Yes, via programmable digital ports (6 Inputs, 6 Outputs) |
