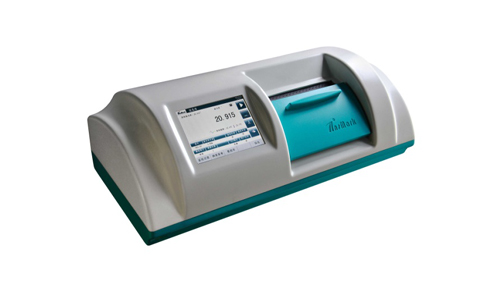

Saccharimeters – IP-digi S2 series

Designed for sugar application

Measure brown sample possible

Supply with suitable tubes

Specification	IP-digi S1	IP-digi S2
Measuring range	±259°Z	±259°Z
Resolution	0.003°Z	0.003°Z
Accuracy	0.003°Z	0.003°Z
Reproducibility	±0.01°Z	±0.01°Z
Temperature range	0-100℃	0-100℃
Temperature resolution	0.1℃	0.1℃
T. control model	----	Peltier
T. control range	----	10 - 50℃
T. control accuracy	----	±0.2℃
Sensitivity	Min0.1%	Min0.1%
Prism	polymer	polymer
Light source	LED, 100000 hours	LED, 100000 hours
Wavelength	589nm	589nm
Measuring mode	Optical rotation, Specific rotation, Concentration, International sugar scale	Optical rotation, Specific rotation, Concentration, International sugar scale
Sample chamber	Up to 200mm	Up to 200mm
Interface	RS232, USB	RS232, USB
Display	8 inches touch screen, color LCD	8 inches touch screen, color LCD
Database	4000 groups data	4000 groups data
