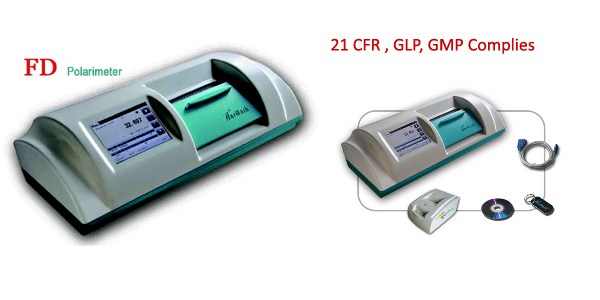

Polarimeter – IP-Digi FD series

2 level Software configuration

Standard FD Version for general use

Professional FD+ version for large lab use

Unique “red eye”monitoring system

User Management

Data Traceability

Audit Date safety in output & storage

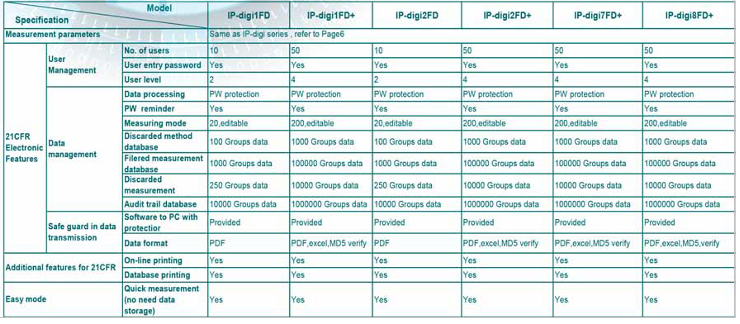

Specification	IP-digi FD 1	IP-digi FD 2	IP-digi FD 7	IP-digi FD 8
Measuring range	±90°	±90°	±90°	±90°
Reasolution	0.001°	0.001°	0.001°	0.001°
Accuracy	±0.01°	±0.01°	±0.04°	±0.01°
Reproducibility	±0.003°	±0.003°	±0.003°	±0.003°
Temperature Range	0-100℃	0-100℃	0-100℃	0-100℃
Temperature resolution	0.1℃	0.1℃	0.1℃	0.1℃
T.Control model	----	Peltier	----	Peltier
T.Control range	----	10-50℃	----	10-50℃
T.Control accuracy	----	±0.2℃	----	±0.2℃
Sensitivity	Min0.5%	Min0.5%	Min0.1%	Min0.5%
Prism	polymer	polymer	Glan Thompson	polymer
Light source	LED, 100000 hours	LED, 100000 hours	LED, 100000 hours	LED, 100000 hours
Wavelength	589nm	589nm	589nm	589nm
Measuring mode	Optical rotation, Specific rotation, Concentration, International sugar scale	Optical rotation, Specific rotation, Concentration, International sugar scale	Optical rotation, Specific rotation, Concentration, International sugar scale	Optical rotation, Specific rotation, Concentration, International sugar scale
Sample chamber	up to 200mm	up to 200mm	up to 200mm	up to 200mm
Measuring method	20, editable	20, editable	20, editable	20, editable
Interface	RS232, USB	RS232, USB	RS232, USB	RS232, USB
Display	8 inch touch screen, Color LCD	8 inch touch screen, Color LCD	8 inch touch screen, Color LCD	8 inch touch screen, Color LCD
Database	>8000 groups data	>8000 groups data	>8000 groups data	>8000 groups data
